The Ultimate Guide to Cut to Length Machines for Efficient Metal Processing

In the ever-evolving world of metal processing, efficiency and precision are paramount. One machine that stands out in achieving these goals is the cut to length machine. This versatile piece of equipment is a game-changer for manufacturers, offering unmatched accuracy and productivity. In this comprehensive guide, we will delve deep into the workings, benefits, applications, and considerations of using a cut to length machine in your operations.

Introduction to Cut to Length Machines

Cut to length machines are of great importance with regard to the metal processing industry, characterized by their capability to provide precision and competency. These machines are designed to uncoil, straighten, and cut metal sheets into desired lengths, thus making production workflow improve tremendously. With increasing demands in modern manufacturing, these systems have undergone changes from simple manual operations to largely automated systems over the years.

How Cut to Length Machines Work

Understanding how a cut-to-length machine works allows one to maximize the benefits of the same. These machines comprise the following key components:

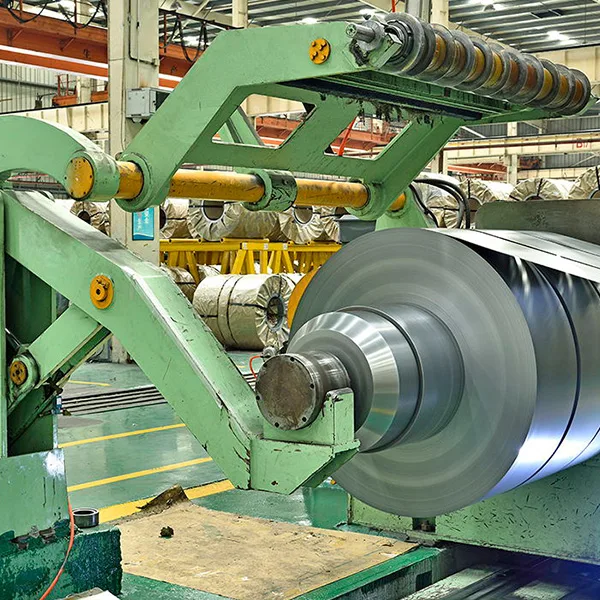

Uncoiler

The cut to length always starts with an uncoiler because it is the machine that holds the coil of metal, and it allows for unwinding the metal at a controlled pace. Modern uncoilers contain brake systems and sensors that ensure the metal can provide smooth, continuous feeding, which is of vital importance for the integrity of the material.

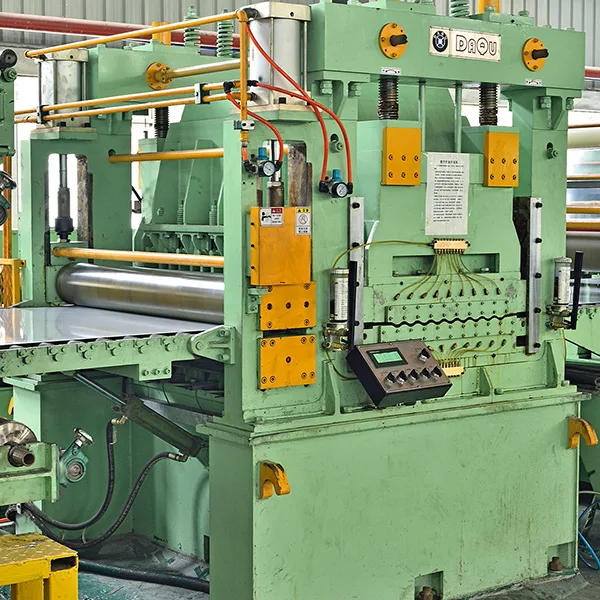

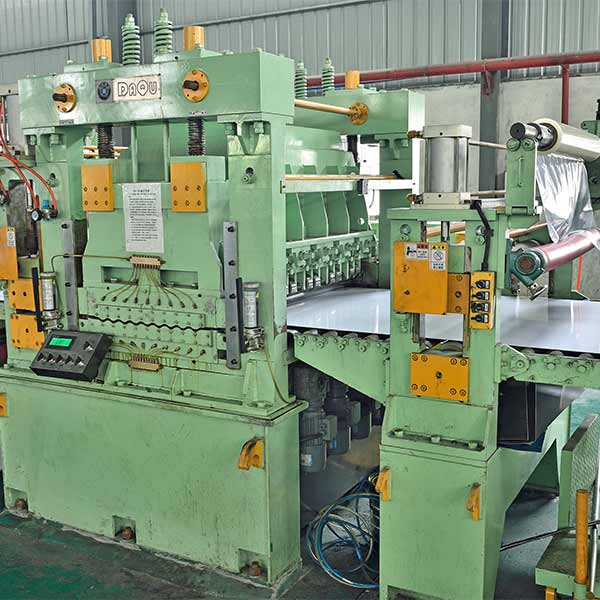

Leveler

The metal sheet goes to a leveler after uncoiling. The leveler will work to take out of the sheet any kind of bend, curve, or kink, and make sure the sheet is absolutely flattened before it gets cut. As such, it is very important because it provides for accurate dimensions and quality of the end products. Advanced state-of-the-art levelers include multiple rollers and are able to be set according to the material type and/or thickness.

Shear

Shear: The shear is a section of the machine where the metallic sheet is cut to the desired length. Shears are of the following types: rotary, flying, and start-stop, and can be used at different working speeds and for different precision needs. Sharpening and taking good care of the shear blades is necessary for not retaining burrs and not distorting the final product.

Stacker

After cutting, the metal sheets must be properly aligned to handle and transport them. The stacker picks up the cut sheets and lays them out in a neat and properly aligned stack; all kinds of sizes and thicknesses are handled by automated stackers without halting the line of production. This non-stop activity ensures uninterrupted production.

Types of Cut to Length Machines

There are different varieties of cut to length machines available for different application purposes. They are:

Rotary Shear

Rotary shear machines are made to run at high speeds. The principle involves blades that rotate, cutting the metal sheet while it moves through the machine uninterruptedly. This type is ideal for high-throughput production where speed and efficiency are at a premium. This continuous operation minimizes downtime in this respect, and the output increases.

Flying Shear

Flying shear machines are designed to cut metal sheets without stopping their movement. The cutting mechanism “flies” with the sheet, attending to the cut while both are in motion. It is ideally suited for uses that need continuous feeding and cutting to reduce cycle times and improve efficiency.

Start-Stop Shear

Stop-start shear machines stop the metal sheet before a cut is made. This variant of the machine is much simpler and less expensive, but ideally suited for lower speed applications. It works well with lower volume production runs as it is not built for high speed and when absolute accuracy is not called for.

Advantages of Using Cut to Length Machines

There are a number of advantages to using a cut to length machine, which include:

Precision Cutting

Cut-to-Length Machines Are Precise: Be it on sheets of metal, this machine can cut them into exact lengths with the least tolerance. This gives full confidence that the material is presented accurately, leading to less rework to achieve customer satisfaction.

Higher Efficiency

One of the main advantages linked to cut-to-length machines is that of automation. These machines reduce manual labor and hence increase the speed by automatically going through the uncoiling process, straightening, cutting, and also stacking. Such efficiency essentially translates to high output and fast times to the market.

Reduced Waste

One cannot waste material when handling metals. Cut to length machines secure efficient usage of materials by cutting sheets to exact lengths, so offcuts and scrap are kept at a minimum. This not only helps save costs but also contributes to functioning in line with the principles of sustainable manufacturing.

Applications of Cut to Length Machines

Cut to length machines have found diverse applications in the following industries:

Automotive Industry

Precision and efficiency are vital in the field of the automotive industry. Body panels and chassis parts, to name a few important parts of the car, are manufactured with the help of cut-to-length machines. Dimensional accuracy of metal cutting enables such critical parts to fit perfectly with one another, enhancing quality and safety in line vehicles.

Construction

It is used for making varying thicknesses and sizes of structural members and for cladding and roofing. These sheets can be produced in short lead times and with the required accuracy through the cut-to-length machine, wherein the concept of reduced material wastage is highly beneficial for on-time construction works.

Electrical and Electronics

The electrical and electronic industry requires a great deal of precision and consistency. The dimensions of different components like enclosures, brackets, and heat sinks from the cut to length machines are exactly alike. This precision in dimensions is very important to have the electronic device or system work properly.

How to Choose the Right Cut to Length Machine

Choosing the correct machine will involve a number of considerations, including:

Key Considerations

While choosing a cut to length machine, consider the material to be treated, the thickness, and also the width of the sheet, plus the speed at which one wants to do the cutting. Each machine is tailored for specific materials like steel, aluminum, or copper, its capabilities are guided by these differences.

Assessing Needs

It’s crucial that you determine your particular production needs. Here you can check the volume of material to process daily, the level of precision required, and any special features needed like automation or linkage to any other equipment. This should help you settle on a machine that fits your actual operational needs.

Budgeting

Though the upfront cost of a cut to length machine may be high, looking at the long-term benefits and cost savings is necessary. But taking into consideration the total cost of ownership, including maintenance and energy consumption, and potential productivity improvement, the person will find out that a well-chosen machine gives a substantial ROI over its life.

Cut to Length Machine Specifications

It is very important to understand the specifications that come with a cut to length machine. You can select an appropriate model if you know the following specifications:

Dimensions

The dimensions of the material determine the size that can be fed into a cut to length machine. Ensure that the chosen machine can hold the width and thickness of the metal sheets you need to process in it. The next bigger machines are able to process bigger sheets, but they also eat up more space and demand a higher investment at the very outset.

Capacities

The capacity of a cut to length machine is the maximum thickness and weight of material the machine can handle. Choose a machine able to handle the heaviest and thickest sheets you will want to use. The overloading of the machine could cause breakages in its mechanism and reduce precision.

Speed

A cut-to-length machine is usually measured in feet per minute or meters per minute. Higher speeds enable more material to be processed in a shorter amount of time, so productivity rises with higher speed machines. Accuracy

Accuracy

Tolerance is another critical cut to length machine specification. Look for machines with tight levels of tolerance to ensure the cut length meets the accuracy of intended specifications. Highly accurate machines reduce wastage of materials and guarantee that the final products all meet the quality standards.

Maintenance of Cut to Length Machines

Regular maintenance is crucial for optimal performance:

Regular Checks

Regular checks have to be done to keep the machine operating smoothly. Check for wear on blades, rollers, motors, and other key machine parts. Early detection can save you from high breakdowns and downtime.

Lubrication

Proper lubrication reduces friction and wear of the moving parts. Follow manufacturer’s recommendation on the proper frequency of lubrication and type of lubricant to be put. Proper and timely lubrication will help keep the machine in top performance and prolong its life span.

Common Issues and Fixes

Some common problems in cut to length machines may be the misalignment of the leveler, blade wear, and at times, electrical problems. Correction at the right time is necessary to ensure precision is not compromised and to reduce on-time interference. One has to stock spare parts to be on standby and instruct the operators on how to undertake the basic troubleshooting and repair operations.

Safety Considerations

Safety is paramount in operating cut to length machines:

Operator Safety

Safety regarding the operator should be a concern. Proper training of the machine’s operators on how to handle the machine should be given. Safety gear should also be issued to the operators, such as gloves, goggles, and hearing protection.

Machine Safety Features

The modern cut-to-length machines are equipped with various safety features designed to avert or protect the operator from danger in the event of an emergency. They have emergency stop buttons, protective guards and other sensors that facilitate anomaly detection and correction. Check and maintain such periodically to ensure proper functioning.

Integration with Other Equipment

The cut to length machines can be smoothly integrated with other relevant equipment, which includes;

Coil Handling

Efficient Coil Handling Systems are indispensable in the handling of the raw material before it gets to the cut-to-length machine. The automated coil handling systems have the capability to quick and accurately load and position the coils, thereby reducing set-up time and improving throughput.

Stacking

Automated stacking systems organize cut sheets into appetizing stacks that can then be easily conveyed or forwarded to the packaging stage. It can also be set to accept and process different sizes and thicknesses to allow manufacturing to continue without manual handling.

Packaging Systems

It connects easily with packaging systems that automate the final steps in a production house. The systems are able to bundle, wrap, and label the cut sheets, which are ready to be in the shipment. The automation paves the way to bringing down the labor cost and maintaining consistent quality in packaging.

Cost Analysis and ROI

The investment made in a cut-to-length machine involves a careful analysis of the costs associated with:

Initial Investment

The cost of a cut to length machine is best understood as the upfront cost, which may include the purchase price, installation costs, and any improvement needed in your facility. While this can be a lump sum upfront investment, it is best to think of long-term benefits and cost savings made.

Long-Term Savings

Cut-to-length machines offer long-term savings on labor costs, increase both production efficiency and waste reduction, and therefore will pay back the initial investment over time while, of course, having a high ROI.

Return on Investment Calculation

The ROI on a cut to length machine is derived from the initial investment versus the long-term savings and productivity enhancement. Added to this would be aspects like higher output, lesser labor costs, and better product quality. A well chosen machine can pay for itself within a few years of operation.

Technological Advancements

The technological advances have completely changed the face of cut to length machines:

Automation

In cut-to-length machines, there is a trend of automation. Automated systems will treat tasks that range from uncoiling to leveling and cutting to stacking with very minimal human interventions. This brings out reduced labor costs, increased speed in production, and consistency.

Smart Controls

Modern cut-to-length machines make use of smart controls that can allow monitoring and adjustments to be made in real time. The controls feel what is happening and make setting adjustments via sensors and software, which optimize machine conditions to execute an efficient, effective cutting process according to the exact required end product. The operator may adjust through user-friendly monitoring interfaces to follow all performances.

Industry 4.0 Integration

The integration of Industry 4.0 connects cut-to-length machines to other plant equipment and enterprise systems. This connectivity will cause the smooth circulation and optimization of data, thereby improving the overall effectiveness of the operations. For example, different machines will talk to each other to change settings through the real-time production data.

Training and Skill Development

Skilled operations on the machine can only be achieved with appropriate employee development:

Operator Training Programs

Where equipment operation is concerned, it will ensure that investment in operator training programs is in place for conducting the safe and efficient working of the machines.

Operator training would typically concern machine setup, operation, maintenance, general safety, among others, to guide operators in safely following these measures through safely. A well-trained operator will quickly catch and correct problems to minimize downtime and increase productivity.

Skill Requirements

Operators in cut to length machines need to have certain skills. Some of these are mechanical inquisitiveness, the potential to be detail-oriented, and skills in troubleshooting and problem resolution. The availability of ongoing training and opportunities to develop skills keep operators updated with changes in new technologies and best practices.

Future Trends in Cut to Length Machines

The future prospects of cut to length machines look bright with some emerging trends such as:

Emerging Technologies

Advances in automation and artificial intelligence (AI) would be driving the next developmental spurt in cut-to-length machine design. AI-led systems will process real-time production data and easily adjust themselves for better performance. These technologies improve precision, reduce downtime, and improve overall efficiency.

Market Trends

The trends touch on demands for precision and better efficiencies in metal processing. Here, the increased demand for the new advanced cut-to-length machines will come from the other segments or industries like automotive, construction, and electronics that continue growing in seeking more quality metal sheets. Being abreast of these trends will always make your operations competitive.

Conclusion

Cut to length machines are integral to modern metal processing, offering unmatched precision and efficiency. By understanding their workings, benefits, and applications, you can make informed decisions to enhance your operations. Stay ahead of the competition by investing in the right machine, maintaining it properly, and staying updated with technological advancements.
