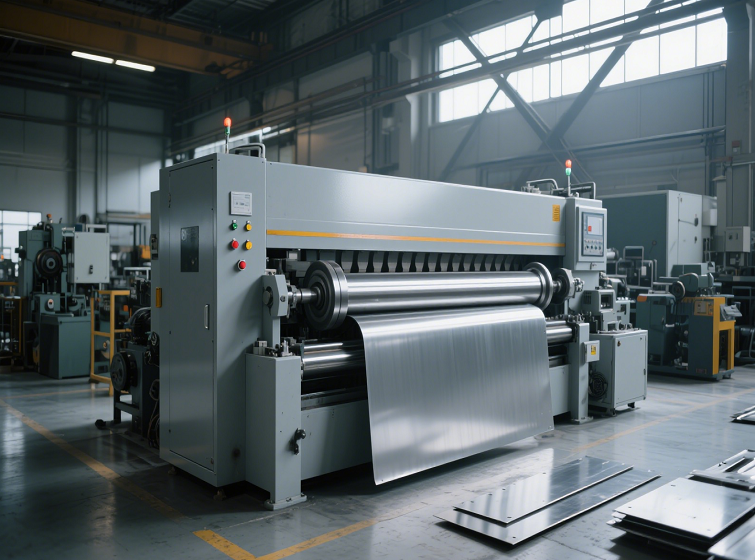

How Does a Steel Coil Slitting Machine Work?

In the metal fabrication industry, steel coil slitting machines play a critical role in transforming large, unwieldy coils of steel into narrower, precision-cut strips. These strips are used in everything from automotive parts and construction materials to household appliances. But how exactly does a steel coil slitting machine achieve this? Let’s break down the step-by-step process to understand the technology and precision behind this essential industrial equipment.

1. Loading the Steel Coil‌

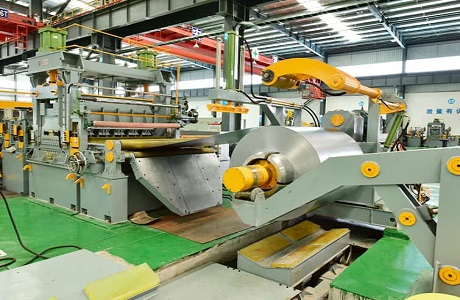

The process begins with preparing the steel coil for slitting. A crane or specialized lifting equipment is used to position the large steel coil onto the ‌uncoiler‌ (also called the payoff reel). The uncoiler holds the coil securely and rotates to feed the steel into the machine. Proper alignment is critical here to ensure the coil unwinds smoothly without tangling or misalignment.

‌Safety Check‌: Operators verify that the coil’s inner diameter matches the uncoiler’s arbor size.
‌Centering‌: The coil is centered on the uncoiler to maintain uniform tension and prevent lateral shifts during unwinding.

2. Feeding the Steel into the Machine‌

Once loaded, the leading edge of the steel coil is fed through a series of ‌guide rollers‌ and ‌straighteners‌. These components flatten the steel and remove any inherent curvature or defects caused by coiling. This step ensures the material is perfectly aligned and flat before it reaches the cutting stage.

‌Straightening Rollers‌: Adjustable rollers apply controlled pressure to eliminate bends or waves.
‌Edge Guidance System‌: Sensors or cameras may be used to track the steel’s edges, ensuring it remains centered as it moves forward.

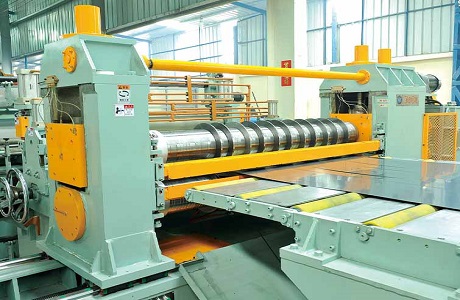

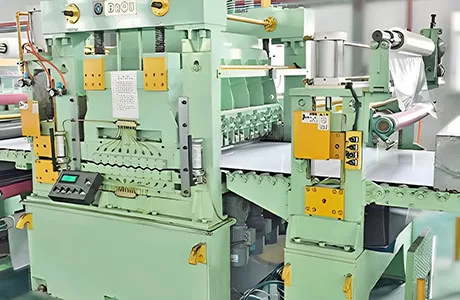

3. Slitting with Rotary Shear Blades‌

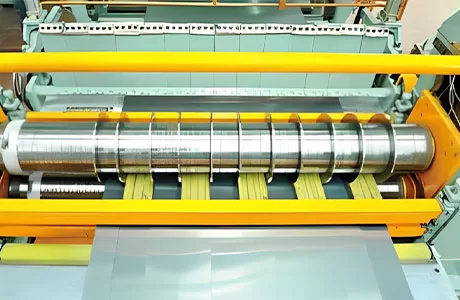

The heart of the slitting machine is the ‌rotary shear system‌, which consists of two circular blades: an upper blade and a lower blade. These blades are positioned to overlap slightly, creating a shearing action that slices through the steel. The number of blades and their spacing determine the width of the final strips.

‌Blade Configuration‌: Blades are spaced according to the desired strip widths. For example, a 1,200mm-wide coil could be slit into six 200mm-wide strips.
‌Blade Material‌: High-speed steel (HSS) or tungsten carbide blades are used for durability and precision.
‌Cutting Action‌: As the steel passes between the rotating blades, the overlapping edges shear the material cleanly without generating excessive heat or burrs.

‌4. Separating and Guiding the Strips‌

After slitting, the individual strips must be separated to avoid contact or overlapping. ‌Split Shafts‌ or ‌divider plates‌ are positioned between the strips to maintain spacing. Additionally, ‌edge-trimming blades‌ may remove uneven edges for a polished finish.

‌Strip Alignment‌: Guide rollers and sensors ensure each slit strip follows its designated path.
‌Scrap Removal‌: Trimmed edges (if any) are collected in a scrap bin for recycling.

5. Recoiling the Slit Strips‌

The final step involves rewinding the slit strips into smaller, manageable coils. The ‌recoiler‌ (or tension reel) uses a motorized shaft to wind the strips at a controlled speed and tension. Proper tension is vital to prevent looseness, warping, or edge damage.

‌Tension Control‌: Hydraulic or pneumatic systems adjust tension dynamically based on strip thickness and width.
Coil Ejection‌: Once the desired length is achieved, the finished coils are removed, labeled, and prepared for shipping or further processing.

‌Key Components of a Steel Coil Slitting Machine‌

To fully appreciate the process, it’s worth highlighting the machine’s core components:

‌Uncoiler‌: Feeds the steel coil into the machine.
‌Straightener‌: Flattens and aligns the material.
‌Slitting Head‌: Houses the rotary blades for cutting.
‌Recoiler‌: Winds the slit strips into new coils.
‌Control Panel‌: Allows operators to adjust speed, tension, and blade settings.

Applications of Slit Steel Coils‌

Slit steel strips are used across industries due to their versatility:

‌Automotive‌: Body panels, chassis components.
‌Construction‌: Roofing, HVAC ducts, structural beams.
‌Appliances‌: Refrigerator panels, washing machine drums.

Advantages of Modern Slitting Machines‌

Precision‌: Tolerances as tight as ±0.1mm ensure uniformity.
‌Speed‌: High-speed machines can process over 600 meters of steel per minute.
‌Material Efficiency‌: Minimal waste due to accurate trimming.
‌Automation‌: CNC systems reduce human error and improve repeatability.

Safety and Maintenance Tips‌

Operating a slitting machine requires strict adherence to safety protocols:

Regular blade inspections to prevent wear-related defects.
Lubrication of moving parts to minimize friction.
Training for operators to handle emergencies, such as material jams.

Conclusion‌

Steel coil slitting machines are marvels of engineering that combine mechanical precision with advanced automation. By transforming raw steel coils into tailored strips, they enable manufacturers to meet the exact demands of diverse industries. Whether you’re producing automotive parts or building materials, understanding the slitting process helps optimize efficiency, reduce waste, and ensure the highest quality output.

For businesses looking to invest in a slitting machine, factors like blade quality, automation features, and after-sales support should guide the decision. In an era where precision and speed are non-negotiable, these machines are indispensable tools in modern metalworking.
